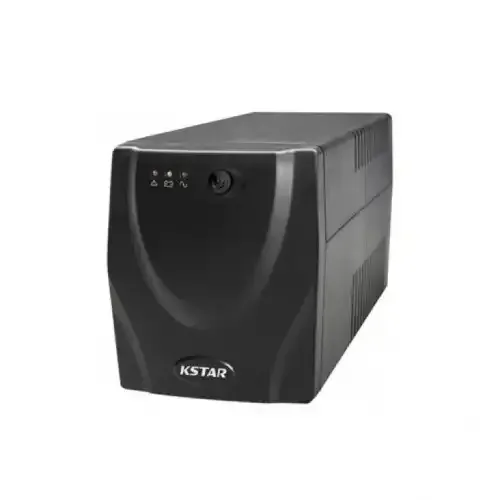

KSTAR 650VA Offline UPS with Plastic Body

Main Feature

Capacity

650VA

Input Voltage

230Vac

Output Voltage

230 (+/-10%)

Frequency (Battery Mode)

50 Hz ±1 Hz

Battery

12V Battery
AC Voltage Regulation: 230+/-10%(Battery mode)
Frequency Range: 50 Hz ±1 Hz(Battery mode)

Input Features

Frequency

40 Hz (auto sensing)”}”>>40 Hz (auto sensing)

Voltage Range

140 – 300 Vac

Output Features

Backup Time

Max. 12 Min(Standard)

Voltage Range

230 (+/-10%)

Type of Wave

Simulated Sine Wave

Transfer Time

Typical 4-8ms, 13ms max

Physical Specification

Dimension

301 x 101 x142.5

Weight

Approx. 4.3

Manufacture Warranty

Warranty

1 Year Warranty
Under the following conditions, the warranty would not be provided:
• UPS burning due to thunder, abnormal overload, insect entrance and others.
• If ambient temperature should not be maintained at 20 to 26 degrees Celsius with proper dehumidification. (24/7)
• If the product is placed in a dusty and damp place.
• In the absence of Generator connectivity Without proper battery charge, the warranty will be void.
• Battery swelling and overcharging due to the wrong system voltage setting of the UPS.
