UGREEN CM762 (35264) AX900 USB Dual Band Wi-Fi Adapter

UGREEN CM762 (35264) AX900 USB Dual Band Wi-Fi Adapter

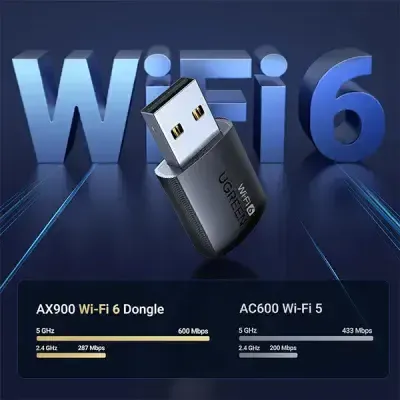

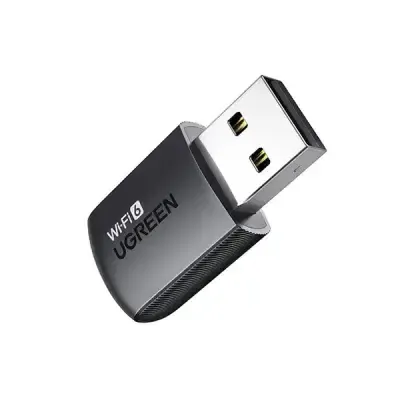

UGREEN CM762 (35264) AX900 USB Dual Band Wi-Fi Adapter offers a stable wireless connection to laptop or desktop users. It supports both 2.4GHz and 5GHz bands, with a maximum speed of 286Mbps on the 2.4GHz band and 600Mbps on the 5GHz band, delivering smooth internet browsing, video streaming, and file downloads. The USB-A male plug meets USB 2.0 requirements with a data rate of up to 480Mbps, as well as being backward compatible with USB 1.1. It supports IEEE 802.11a/b/g/n/ac/ax wireless protocols and runs on wireless channels 1-13, 36-48, 52-64, and 149-165. The Wi-Fi adapter is secured by WPA-PSK, WPA2-PSK, and WPA3-SAE encryption for safe wireless connections.

It features two operational modes: Station Mode for wireless connection to a router, and Soft AP Mode to allow the adapter to function as a Wi-Fi hotspot. The single antenna integrated design provides 2 dBi gain, with up to 20 dBm (EIRP) transmission power. This product features a blue LED indicator for its connection and the status of data transfer. If the driver is loaded but there is no Wi-Fi connection, the LED is on. It blinks slowly once the transfer of data has started.

It is powered through a USB interface and consumes about 35mA on standby and 106mA during use. It supports Windows 10/11 and Linux (kernel 3.10 to 6.2). The adapter comes with a Windows built-in driver, and both Windows and Linux users can install the driver manually. Operating temperatures range from 0°C to 45°C, and storage temperatures range from -10°C to 55°C. Safety features are overcurrent, overvoltage, and short-circuit protection.

Key Features of CM762 (35264):
