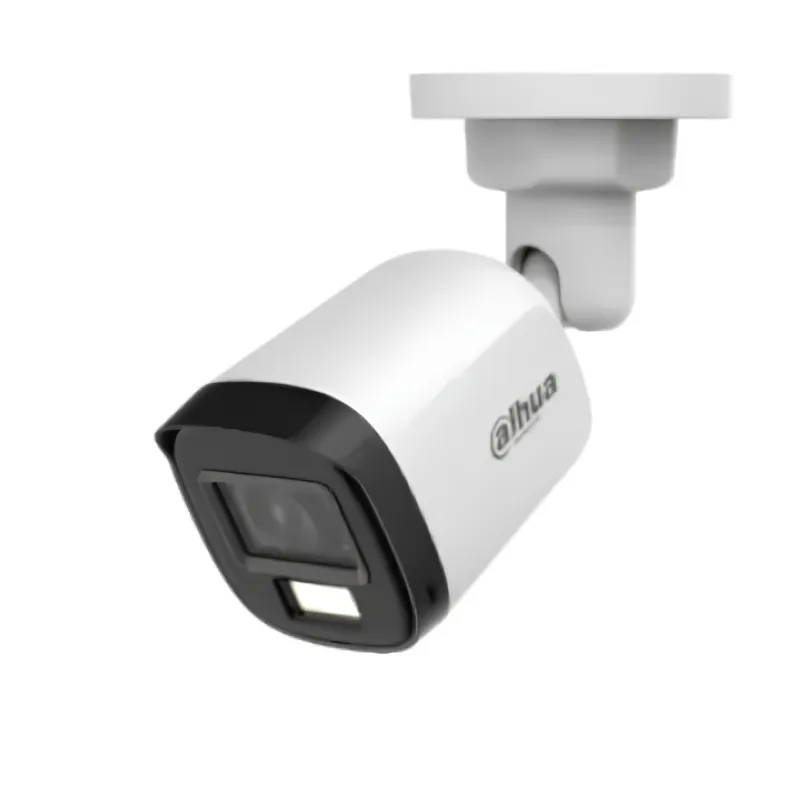

Dahua HAC-B1A21P-U-IL-A with Audio 2MP Smart Dual Light HDCVI Bullet CC Camera

General

Casing

Metal front cover + plastic rear barrel + metal bracket

Dimensions

146.1 mm × 70.0 mm × 69.8 mm (5.75" × 2.76" × 2.75")

Weight

0.23 kg (0.51 lb)

Pan/Tilt/Rotation

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Operating Conditions

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Conditions

–40 °C to +60 °C (–40 °F to +140 °F)

Power Supply

12 VDC ± 30%

Power Consumption

Max 3.3 W (12 VDC, WLED on)

Camera

Image Sensor

2 MP CMOS

Effective Pixels

1920 (H) × 1080 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s

Minimum Illumination

0.02 lux@F2.0 (Color, 30 IRE);
0.002 lux@F2.0 (B/W, 30 IRE);
0 lux (Illuminator on)

S/N Ratio

>65 dB

IR Distance

IR: 30 m (98.43 ft);
Warm light: 20 m (65.62 ft)

IR On/Off Control

Auto / Manual

IR LEDs

2 (Warm light);2 (IR light)

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm; 6 mm

Max Aperture

F2.0

Angle of View

2.8 mm: H: 100°; V: 54°; D: 117°
3.6 mm: H: 80°; V: 43°; D: 94°
6 mm: H: 43°; V: 24°; D: 50°

Close Focus Distance

2.8 mm: 0.5 m (1.64 ft)
3.6 mm: 0.8 m (2.62 ft)
6 mm: 2.4 m (7.87 ft)

Video

Resolution

1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Frame Rate

CVI:
PAL: 1080p@25 fps
NTSC: 1080p@30 fps
AHD:
PAL: 1080p@25 fps
NTSC: 1080p@30 fps
TVI:
PAL: 1080p@25 fps
NTSC: 1080p@30 fps
CVBS:
PAL: 960H
NTSC: 960H

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Day/Night

Auto(ICR)/Color/B/W

BLC Mode

BLC; HLC; DWDR

Gain Control

Auto/Manual

Noise Reduction

2D NR

Interface

Audio Interface

One channel built-in mic

Special Features

Features

Smart Dual Light.
30 m illumination distance.
Super Adapt.
Built-in MIC.
IP67

Warranty

Warranty

1 Year
