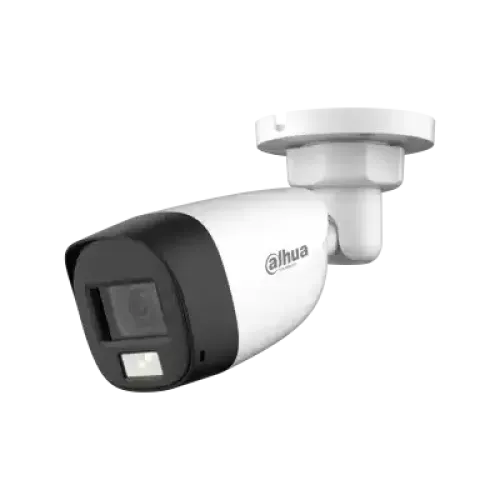

Dahua HAC-HFW1500CLP-IL-A 5MP Smart Dual Light Audio Bullet Camera

General

Casing

Plastic

Dimensions

163.4 mm × 69.7 mm × 70 mm (6.43" × 2.74" × 2.76")

Weight

0.19 kg (0.42 lb)

Pan/Tilt/Rotation

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Operating Conditions

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Conditions

–40 °C to +60 °C (–40 °F to +140 °F)

Power Supply

12 VDC ± 30%

Power Consumption

Max 4.5 W (12 VDC, WLED on)

Camera

Image Sensor

5 MP CMOS

Effective Pixels

2880 (H) × 1620 (V) Max 25 fps@5MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s

Minimum Illumination

0.05 lux@F1.6 (Color, 30 IRE)
0.005 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

IR Distance

IR: 20 m (65.62 ft)
Warm Light: 20 m (65.62 ft)

IR On/Off Control

Auto / Manual

IR LEDs

2 (Warm light);2 (IR light)

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm;3.6 mm

Max Aperture

F1.6

Close Focus Distance

2.8 mm: 0.8 m (2.62 ft)
3.6 mm: 1.3 m (4.27 ft)

Video

Resolution

5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Frame Rate

CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps
NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Day/Night

Auto(ICR)/Color/B/W

BLC Mode

BLC; HLC; DWDR

Gain Control

Auto/Manual

Noise Reduction

2D NR

Interface

Audio Interface

1-channel built-in MIC

Video Interface

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Special Features

Features

Smart Dual Light.
Super Adapt.
Built-in MIC.
IP67, 12 VDC.

Warranty

Warranty

1 Year
