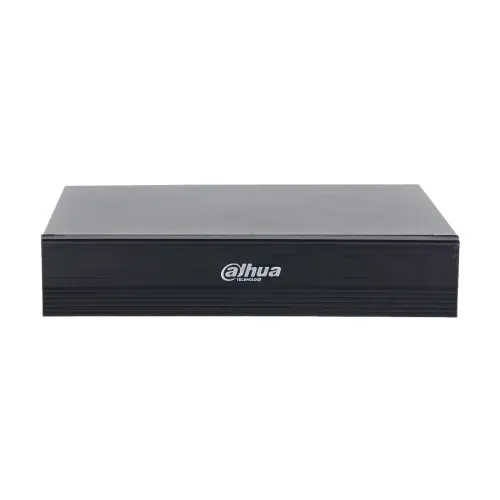

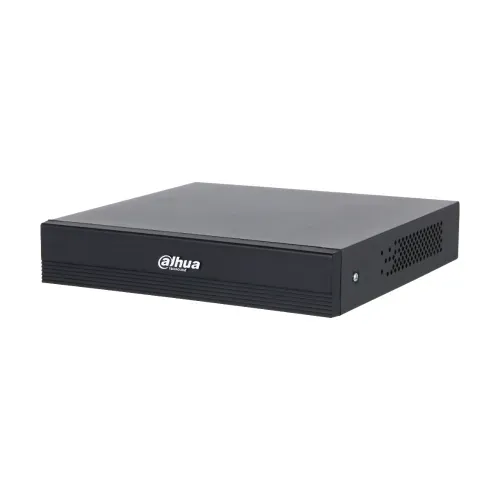

Dahua XVR1B04-I/T 4-Channel 1U 1HDD WizSense XVR

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Audio and Video

IP Camera Input

4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
Up to 5 channels of IPC access

Two-Way Talk

4-channel two-way talk over coaxial cable allows

Display

Interface

1 HDMI; 1 VGA

Resolution

CVI: 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30 fps.
TVI: 1080p@25/30 fps; 720p@25/30 fps.
AHD: 1080p@25/30 fps; 720p@25/30 fps.

Multi-Screen Display

When IP extension mode not enabled: 1/4
When IP extension mode enabled: 1/4/6

Recording

Compression

AI Coding; Smart H.265+; H.265; Smart H.264+; H.264

Bit Rate

32 kbps–4096 kbps

Record Mode

General; alarm; motion detection

Video Detection And Alarm

Video Detection

Motion detection; HDCVI alarm; camera external alarm; network alarm; PIR alarm

Alarm Input

N/A

Relay Output

N/A

Playback And Backup

Sync Playback

1/4

Playback Function

Instant playback; general playback; event playback; tag playback; smart playback

Backup Mode

USB device and network

Third Party Support

Third Party Support

Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF

Network

Interface

2 (2 rear USB 2.0 ports)

Ethernet Port

1 (10/100 Mbps Ethernet port, RJ-45)

Network Function

HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS;
SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)

Smart Phone

iOS; Android

Interoperability

ONVIF 25.06 (Profile T; Profile S; Profile G; Profile M); CGI; SDK

Storage

Internal HDD

1 SATA port, up to 6 TB. This limit varies depending on the environment temperature.

eSATA

N/A

Auxiliary Interface

USB

2 (2 rear USB 2.0 ports)

RS232

N/A

RS485

N/A

Power

Power Supply

12 VDC, 1.5 A

Power Consumption

<7 W (without HDD)

Component Environment

Operational Conditions

–10 °C to +45 °C (+14 °F to +113 °F)

Storage Conditions

–20 °C to +60 °C (–4 °F to +140 °F)

Construction

Dimensions

197.0 mm × 204.3 mm × 41.5 mm (7.76" × 8.04" × 1.63") (W × D × H)

Net Weight

0.54 kg (1.19 lb)

Gross Weight

0.94 kg (2.07 lb)

Warranty

Manufacturing Warranty

1 Year
