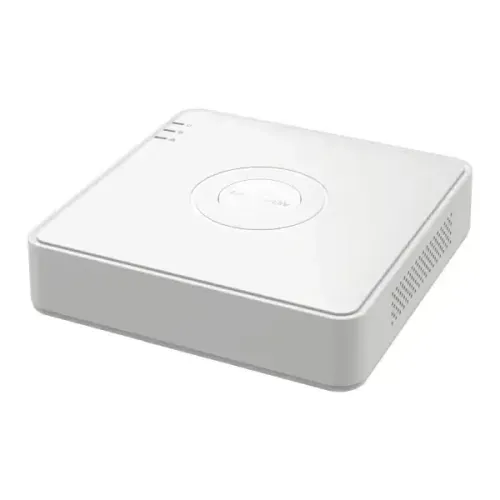

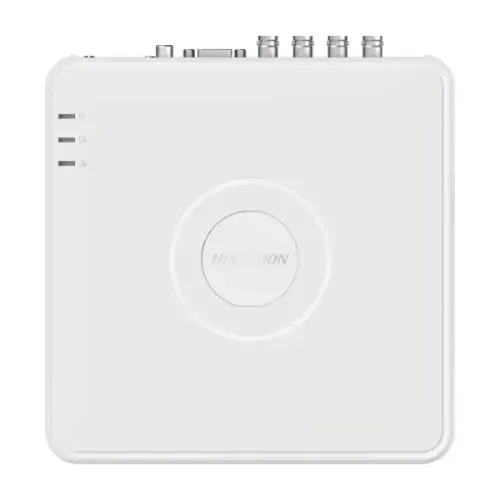

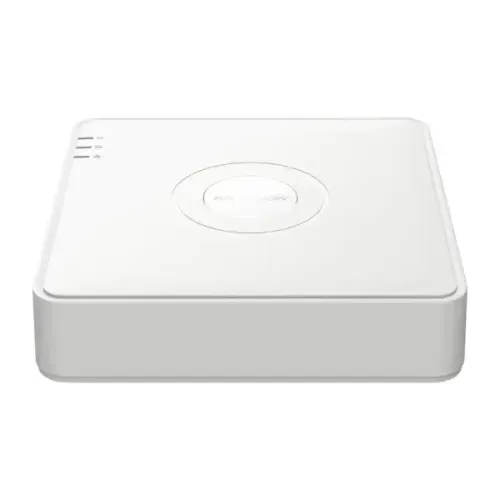

Hikvision DS-7108HGHI-M1/T 08 Channel Mini 1U DVR

Audio and Video

IP Camera Input

2-ch (up to 10-ch)
Up to 1080p resolution
Support H.265+/H.265/H.264+/H.264 IP cameras

Display

Resolution

HDTVI Input: 1080p25, 1080p30, 720p25, 720p30
AHD Input: 1080p25, 1080p30, 720p25, 720p30
HDCVI Input: 1080p25, 1080p30, 720p25, 720p30
CVBS Input: Support
HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Recording

Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Resolution

For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
For 720p stream access: 720p/WD1/4CIF/VGA/CIF
For SD stream access: WD1/4CIF/VGA/CIF

Record Rate

Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps
For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream: 4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)

Bit Rate

32 Kbps to 4 Mbps

Others

Stream Type: Video, Video & Audio
Audio Compression: G.711u
Audio Bitrate: 64 Kbps

Video Detection And Alarm

Alarm Input

N/A

Playback And Backup

Sync Playback

8-ch

Search Mode

Quick search by object or event type is supported

Network

Ethernet Port

1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Network Function

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP, HTTPS

Storage

Internal HDD

1 SATA interface
Up to 4 TB capacity for each disk

Auxiliary Interface

USB

2 × USB 2.0

Power

Power Supply

12 VDC, 1.5 A

Power Consumption

≤ 10 W (without HDD)

Component Environment

Operational Conditions

-10 °C to 55 °C (14 °F to +131 °F)

Construction

Dimensions

200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)

Net Weight

≤ 1 kg (without HDD, 2.2 lb.)

Warranty

Manufacturing Warranty

1 Year
