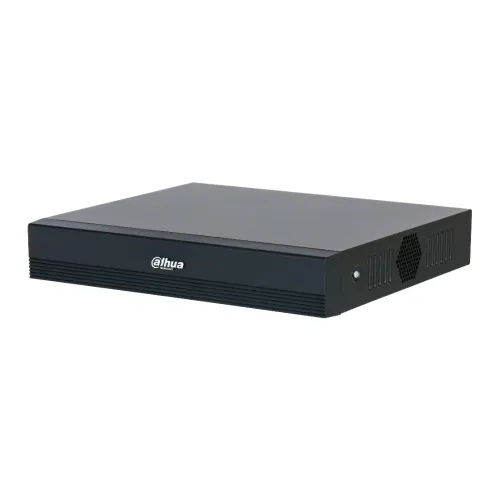

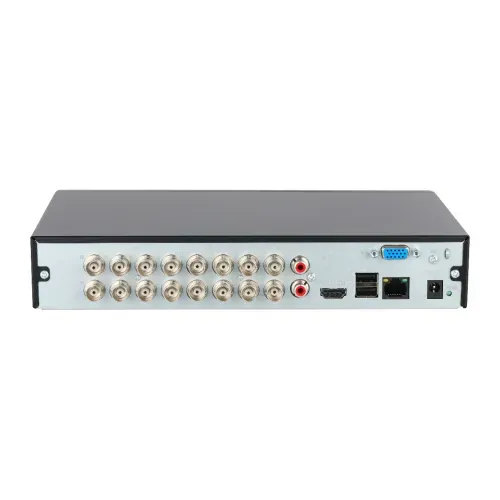

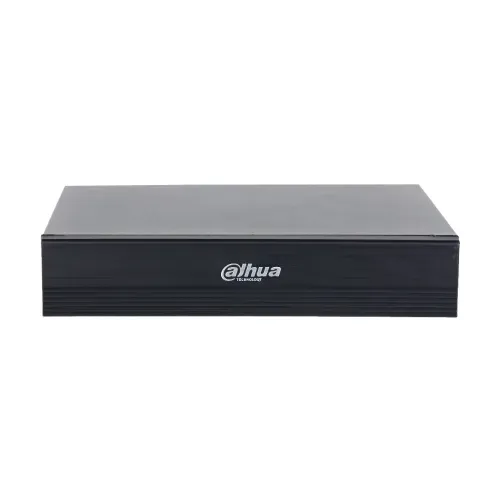

Dahua XVR1B16-I/T 16-Channel Penta-brid Compact Digital Video Recorder

System

Main Processor

Industrial-grade processor

Operating System

Embedded linux

Audio and Video

IP Camera Input

2 IP channel by default + 16 channels

Two-Way Talk

Coaxial two-way talk: 16-channel BNC
Local and network user two-way talk: Shares the same audio input with the first channel

Display

Interface

1 SATA port, up to 16 TB. This limit varies depending on the environment temperature.

Resolution

HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

Multi-Screen Display

When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25

Recording

Compression

Video Compression : AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression: G.711a; G.711u; PCM

Record Rate

Main stream: the 1st channel 1080N/720p@(1 fps–25/30 fps), others 1080N/720p@(1 fps–15 fps); 960H/D1/CIF@(1 fps–25/30 fps)
Sub stream: CIF@(1 fps–7 fps)

Bit Rate

32 kbps–4096 kbps

Record Mode

General; alarm; motion detection

Video Detection And Alarm

Alarm Input

Motion detection; HDCVI alarm; camera external alarm; network alarm; PIR alarm
Intelligent Alarm: SMD Plus

Playback And Backup

Sync Playback

1/4/9/16

Playback Function

Play; Pause; Stop; Rewind; Fast play; Slow Play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom

Backup Mode

USB device and network

Third Party Support

Third Party Support

Dahua, Arecont Vision, AXIS; Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Network

Interface

1 (10/100 Mbps Ethernet port, RJ-45)

Network Function

HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)

Storage

Internal HDD

1 SATA port, up to 16 TB.

eSATA

N/A

Auxiliary Interface

USB

2 (2 rear USB 2.0 ports)

RS232

N/A

RS485

N/A

Power

Power Supply

DC 12V/2A

Power Consumption

< 10W

Component Environment

Operational Conditions

-10°C to +45°C (+14°F to +113°F), 10%–90% (RH)

Storage Conditions

-20°C to +70°C (-4°F to +158°F), 0%–90% (RH)

Construction

Dimensions

260.0 mm × 231.6 mm × 47.6 mm (10.24" × 9.12" × 1.87") (W × D × H)

Net Weight

0.89 kg (1.96 lb)

Gross Weight

1.54 kg (3.40 lb)

Warranty

Manufacturing Warranty

1 Year
