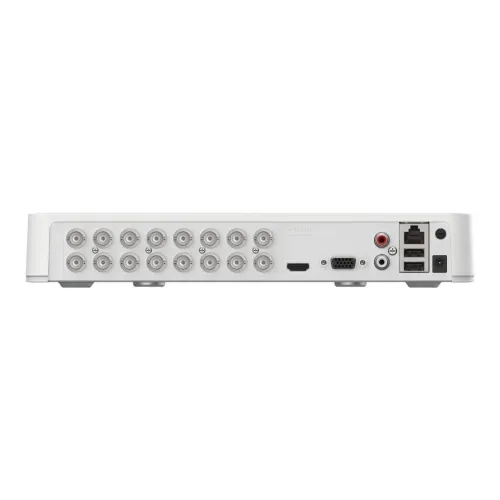

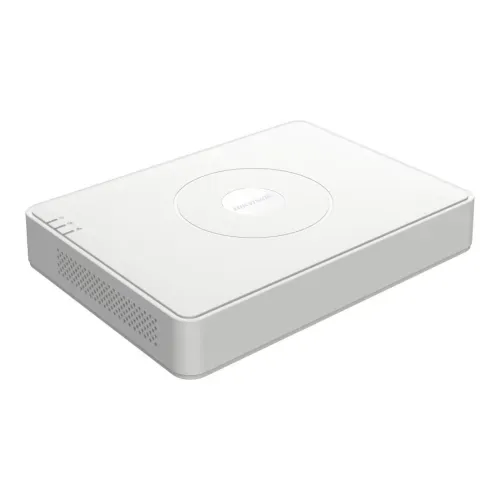

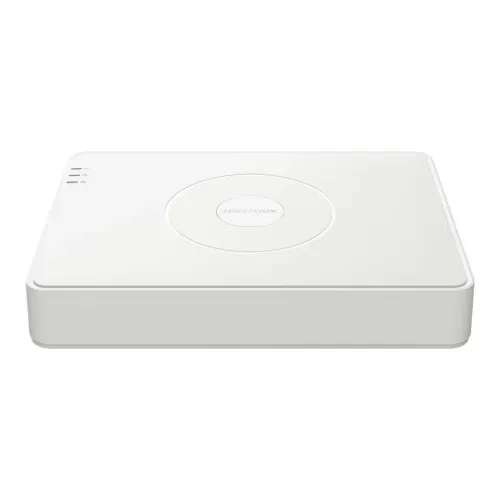

Hikvision DS-7116HGHI-M1/T 16 Channel Lite Mini 1U DVR

Audio and Video

IP Camera Input

16 Channel

Two-Way Talk

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Display

Resolution

For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For standard definition stream access: WD1/4CIF/VGA/CIF

Recording

Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Resolution

For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For standard definition stream access: WD1/4CIF/VGA/CIF

Bit Rate

32 Kbps to 4 Mbps
Audio Bitrate: 64 Kbps

Others

Dual-stream Support
Total Bandwidth: 96 Mbps

Playback And Backup

Sync Playback

16-ch

Network

Ethernet Port

1 x RJ45 10M/100M self-adaptive Ethernet interface

Maximum User Access

128

Storage

Internal HDD

Up to 6TB

HDD Mode

1 x SATA

Auxiliary Interface

USB

2 x USB 2.0

Power

Power Supply

12 VDC, 2 A

Power Consumption

<- 7 W (without HDD)

Component Environment

Operational Conditions

Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity
10% to 90%

Construction

Dimensions

285 × 210 × 48 mm (11.2 × 8.3 × 1.9 inch)

Net Weight

<- 1.8 kg

Warranty

Manufacturing Warranty

1 Year Warranty
