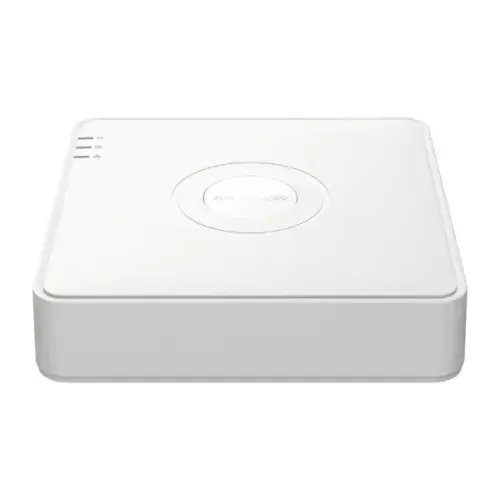

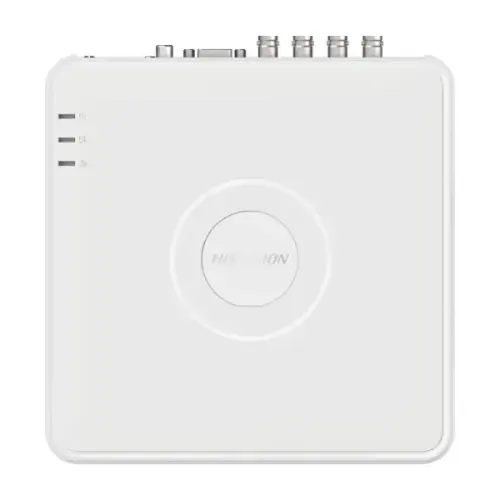

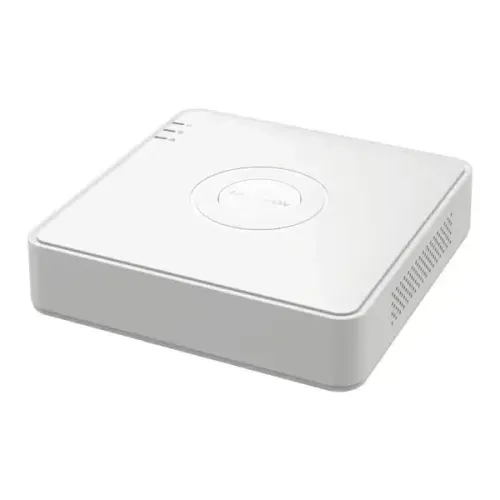

Hikvision DS-7104HGHI-M1/T 04 Channel DVR

Audio and Video

IP Camera Input

Up to 5-ch IP camera inputs
1-ch (up to 5-ch) Up to 2MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras

Two-Way Talk

Support all channels HDTVI two-way audio technology

Display

Resolution

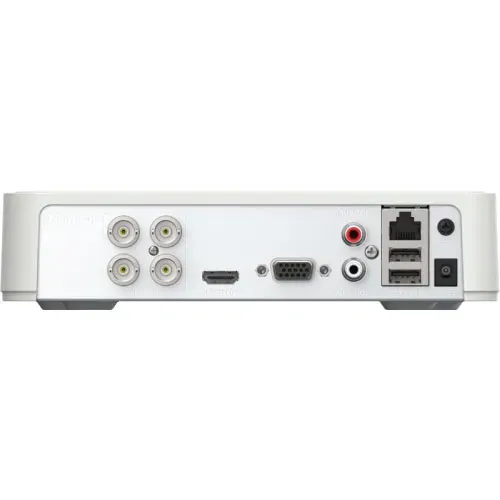

Analog Video Input-4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input-1080p25, 1080p30, 720p25, 720p30
AHD Input-1080p25, 1080p30, 720p25, 720p30
HDCVI Input-1080p25, 1080p30, 720p25, 720p30
CVBS Input-Support
HDMI Output-1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output-1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode-HDMI/VGA simultaneous output
Audio Input-1-ch RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable
Audio Output-1-ch, RCA (Linear, 1 KΩ)

Recording

Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Resolution

For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF

Record Rate

Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: 4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)

Bit Rate

32 Kbps to 4 Mbps

Others

Stream Type-Video, Video & Audio
Audio Compression-G.711u
Audio Bitrate-64 Kbps
Audio over coaxial cable, motion detection

Playback And Backup

Sync Playback

4-ch

Network

Interface

SATA-1 SATA interface
Capacity-Up to 4 TB capacity for each disk
USB Interface-Rear panel: 2 × USB 2.0
64 Mbps

Ethernet Port

1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Network Function

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS

Power

Power Supply

12 VDC, 1.5 A

Power Consumption

≤ 10 W (without HDD)

Component Environment

Operational Conditions

Working Temperature
-10 °C to 55 °C (14 °F to +131 °F)

Storage Conditions

Working Humidity
10% to 90%

Construction

Dimensions

200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)
≤ 0.8 kg (without HDD, 1.8 lb.)

Warranty

Manufacturing Warranty

1 Year
